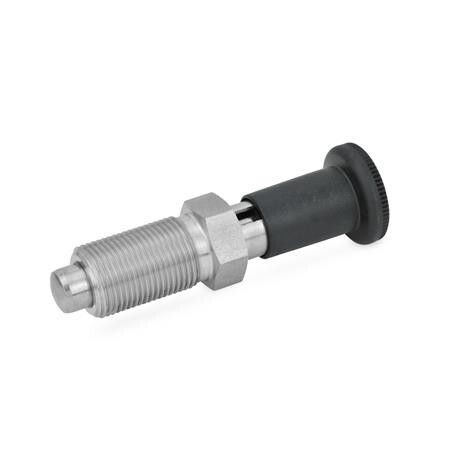

Indexing plunger
GN 817.2-12-15-C-NI stainless steelNI - Stainless steel
Item-no.: 1213743Supplier number: 817.2-12-15-C-NIcustoms tariff number: 73181900EAN: 4045525637245
PU (Packaging): 5 PieceQuantity:
1 PiecePackable
Item available in 77 variants:
Price and stock visible after login
Description

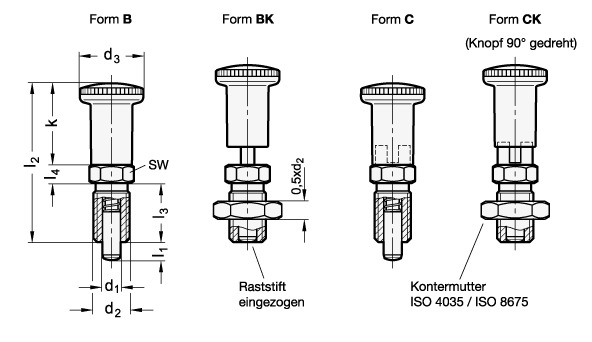

Stainless steel indexing plungers GN 817.2 correspond to GN 817, they only differ by a longer knob. Type C / CK are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Attributes
Bolt diameter d1
12
Detent travel l1
15
End
40
Federdruck Anfang
11.5 N
Form
C - with detent lock, without lock nut
L2
79
Material
NI - Stainless steel
RoHS
Ja
SW
22
Spring pressure in N ≈start
11.5
Weight
0.131 kg
d2
M 20 x 1,5
d3
28
k
36
l3
33
l4
10
