Detent bolt with lock nut & detent lock
GN 817-6-6-CK-RT Button redST - Steel
Item-no.: 1213947Supplier number: 817-6-6-CK-RTcustoms tariff number: 73181900EAN: 4045525613911
Quantity:
1 PiecePackable
Item available in 7 variants:
Price and stock visible after login
Description

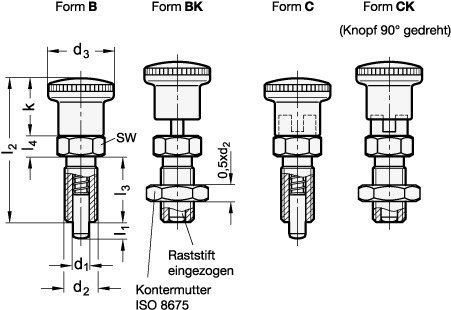

Indexing plungers GN 817 with rest position (Type C / CK) are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Attributes
Bolt diameter d1
6
Colour
RT - red, RAL 3000, matt
Detent travel l1
6
End
19
Federdruck Anfang
6.5 N
Form
CK - with detent lock, with lock nut
L2
48
Material
ST - Steel
RoHS
Ja
SW
14
Spring pressure in N ≈start
6.5
Weight
0.070 kg
d2
M 12 x 1,5
d3
23
k
20
l3
22
l4
6
