Detent bolt with detent lock
GN 817-16-20-CK-RT Lock nutST - Steel
Item-no.: 1353445Supplier number: 817-16-20-CK-RTcustoms tariff number: 73181900EAN: 4045525069770
Quantity:
1 PiecePackable
Item available in 7 variants:
Price and stock visible after login
Description

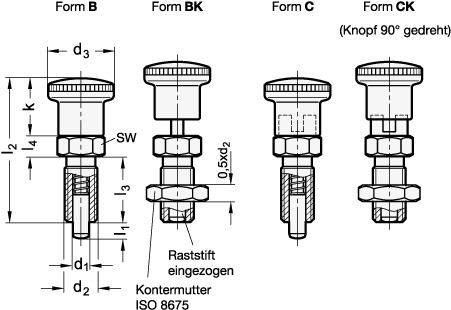

Indexing plungers GN 817 with rest position (Type C / CK) are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Attributes
Bolt diameter d1
16
Colour
RT - red, RAL 3000, matt
Detent travel l1
20
End
54
Federdruck Anfang
13 N
Form
CK - with detent lock, with lock nut
L2
78.5
Material
ST - Steel
RoHS
Ja
SW
27
Spring pressure in N ≈start
13
Weight
0.280 kg
d2
M 24 x 2
d3
33
k
28.5
l3
38
l4
12
