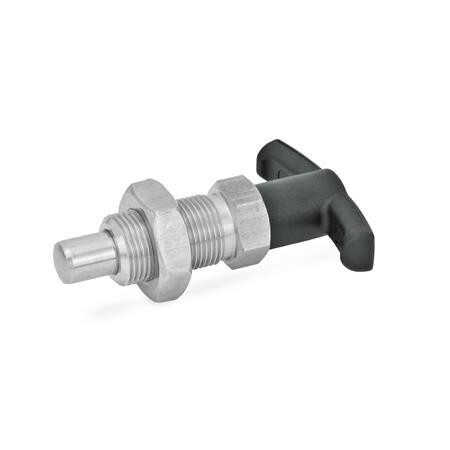

Locking bolt with T-handle & lock nut
GN 817.4-12-15-BK-NI stainless steelNI - Stainless steel
Item-no.: 1213828Supplier number: 817.4-12-15-BK-NIEAN: 4045525707245
PU (Packaging): 5 PieceQuantity:
1 PiecePackable
Item available in 46 variants:
Price and stock visible after login
Description
Stainless steel indexing plungers GN 817.4 are similar to GN 817, but with a T-handle instead of a round head. This shape allows better visual orientation of the indexing position of Type C and is advantageous when greater unlocking forces occur. Type C with rest position is used in such applications where the plunger must not protrude continually. In that case the knob is retracted and afterwards turned by 90°. A notch keeps the plunger in this position.
Attributes
Bolt diameter d1
12
Detent travel l1
15
End
40
Federdruck Anfang
11.5 N
Federdruck in N≈Anfang
11.5
Form
BK - without detent lock, with lock nut
L2
68
Material
NI - Stainless steel
RoHS
Ja
SW
22
Weight
0.155 kg
d2
M 20 x 1,5
k
25
l3
33
l4
10
l5
59
