Ganter

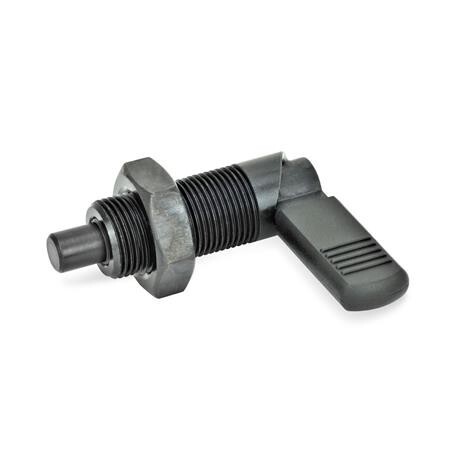

Locking bolt with cap & lock nut

GN 612-5-M12-BK
ST - Steel
Item-no.: 1208149Supplier number: 612-5-M12-BKEAN: 4045525591554

PU (Packaging): 5 PieceQuantity: ​​ 1 PiecePackable
Item available in 84 variants:
Short-term Sourcing

Description
Cam action indexing plungers GN 612 are used in cases where the locking pin must not protrude all the time. By rotating the lock through 180° the locking pin withdraws itself. A groove is provided in either position to prevent the lock from rotating.
Attributes
Bolt diameter d1
5
End
18
Federdruck Anfang
8 N
Form
BK - with plastic cap, with lock nut
L1
47
L2
8
Material
ST - Steel
RoHS
Ja
Screw thread d2
M 12
Weight
0.036 kg
d3
12
l3
26
l4
26
l5
32
