Locking disc
GN 189-32-60-BPA - plastic, polyamide
Item-no.: 1343934Supplier number: 189-32-60-Bcustoms tariff number: 39269097EAN: 4045525383616
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 8 variants:
Price and stock visible after login
Description
With the aid of serrated locking plates GN 189, standard components can be connected together at a defined angle with a positive connection. The tooth count of 60 enables the adjustment in 6° steps, resulting in the indexing positions listed in the separate table. The range of designs makes these plates adaptable for almost any application in this particular field. Thrust springs GN 187.2 can be placed between the locking plates during installation, allowing a clean separation upon removal.
Attributes
Form

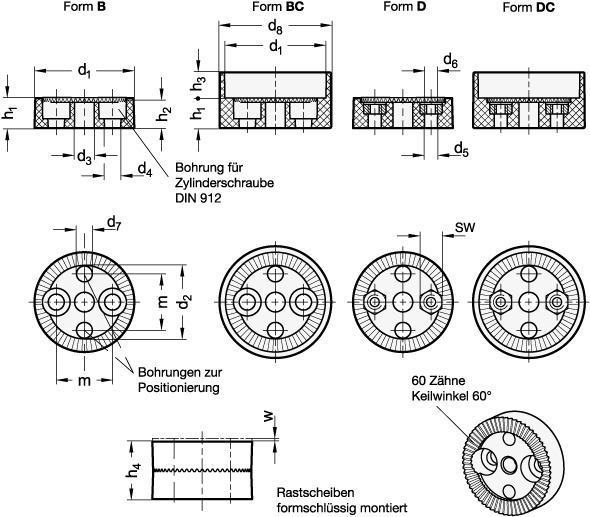

B - with hole d~3~ in the centre, with two countersunk holes for cheese head screws
Material
PA - plastic, polyamide
Number of teeth z
60
Outer diameter d1
32
RoHS
Ja
Weight
0.009 kg
d2
23.5
d3
6.3
d4
5
d7
5
h1
9.5
h2
9
h4 (2 x h2)
18
m
18
w min. disengagement travel
1.2
