Reducing nipple short G 3/4 a. G 1/2 i.
SW 32 Brass vern.Item-no.: 1373268Supplier number: MSN251K3412customs tariff number: 74122000EAN: 4047322489645
Quantity:
1 PiecePackable
Item available in 26 variants:
Price and stock visible after login
Description
Reducing nipple short type G 3/4 o., G 1/2 i. AF 32 nickel-plated brass, Max. working pressure 25 bar, Max. operating temp. 150 °C. Suitable for air, water, oil, steam, etc.
Attributes
External thread
G 3/4
Gewinde 1
G 1/2 IG
Gewinde 2
G 3/4 AG
Internal thread
G 1/2

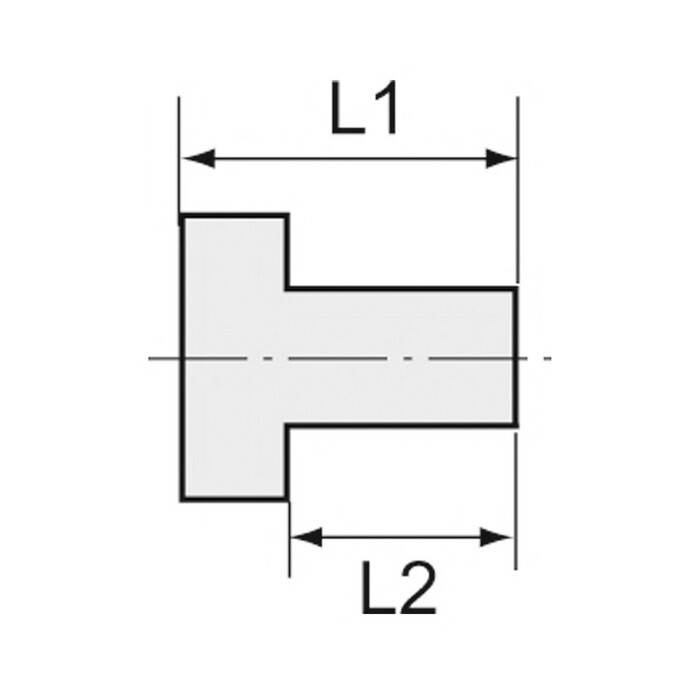

L1
18,0 mm
L2
12,0 mm
Material
Nickel-plated brass CW614N (galvanised nickel-plated)
Operating temperature max.
150 °C
Riegler article number
134718
SW
32 mm
Working pressure max.
25 bar
