Reducing nipple long M5 a. G 1/8 i. SW
14 Brass vern.Item-no.: 1373319Supplier number: MSN251LM518customs tariff number: 74122000EAN: 4047322490153
Quantity:
1 PiecePackable
Item available in 5 variants:
Price and stock visible after login
Description
Reducing nipple, Long type, M5 o., G 1/8 i., AF 14, Nickel-plated brass, Max. working pressure 25 bar, Max. operating temp. 150 °C. Suitable for air, water, oil, steam, etc.
Attributes
External thread
M5
Gewinde 1
G 1/8 IG
Gewinde 2
M5 AG
Internal thread
G 1/8

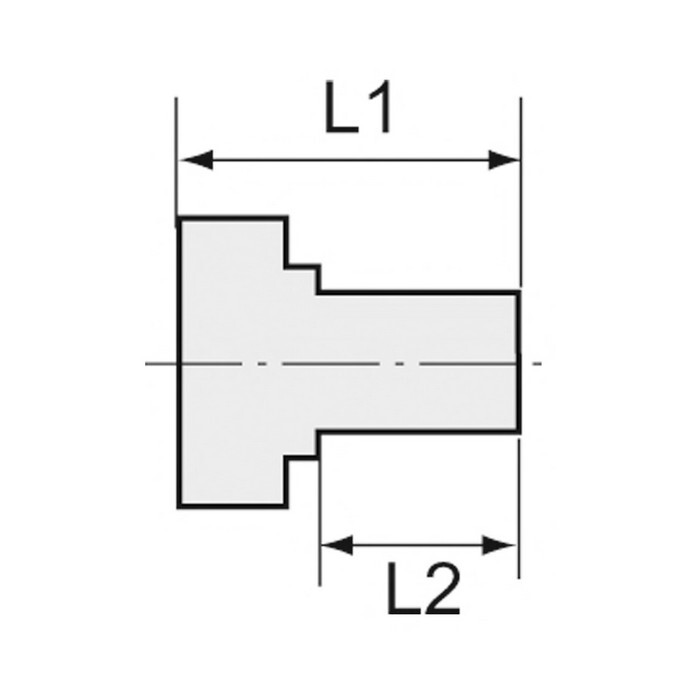

L1
19,0 mm
L2
5,0 mm
Material
Nickel-plated brass CW614N (galvanised nickel-plated)
Operating temperature max.
150 °C
Riegler article number
134769
SW
14 mm
Working pressure max.
25 bar
