Ring nut rotatable high-strength

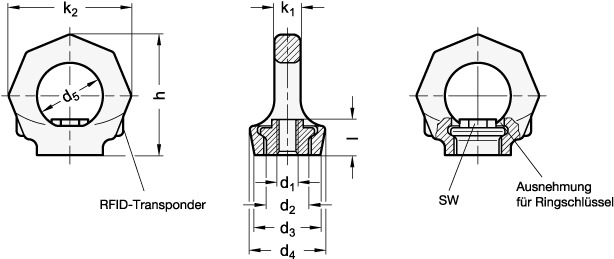

Lifting eye nuts GN 583 are mounted in rotating bearings, allowing the direction of the force action to be adjusted and preventing inadvertent loosening or overturning (as potentially possible in lifting eye nuts DIN 582). Lifting eye nuts GN 583 offer a high load carrying capacity and they are tested to meet safety standards (safety factor 4). The rated load carrying capacity listed in the above table is clearly marked on the ring. It applies to the most unfavourable load application of the load types listed opposite. Lifting eye nuts GN 583 comply with Mechanical Engineering Directive 2006 / 42 / EG and are BG tested. The integrated RFID transponder clearly marks and identifies the lifting point, e.g. during the prescribed regular inspection. The hexagon socket nut cannot be removed from the ring. The operating instruction contains further guidelines and is included with every lifting eye nut (see also at www.ganternorm.com/en/service).
