Description

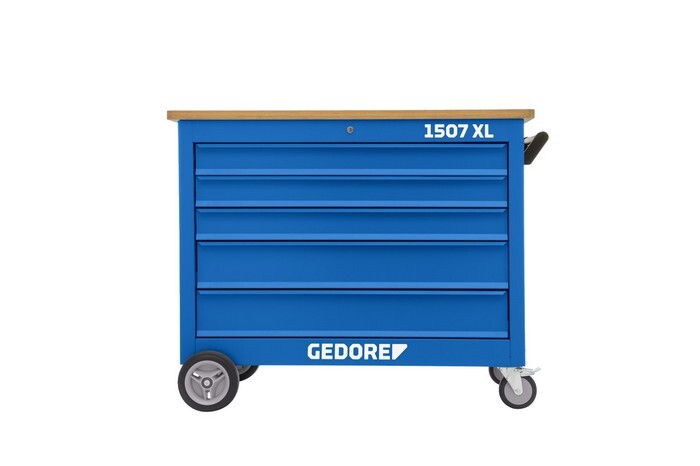

Body: Dimensions: H 985 x W 1200 x D 625 mm, 30 mm thick multiplex beech wood worktop, surface protected by linseed oil varnish, Worktop set back to park flush against the wall, One drawer unit in trolley width, With handle for easy pushing, pulling and turning, Side walls with Euro perforation 10 x 38 mm to fix hooks and tools, Ready to take up tool holder KL-5501-20 for installation of spring compressor KL-5501, Safety through heel protection for persons, Sheet steel, corrosion resistant and scratch-proof powder-coated, GEDORE blue, Drawers: Central locking with cylinder lock, Wide drawers (W 998 x D 474 mm) fully extendable, removable, Individual drawer stopping stops more than one drawer being opened, one-handed operation, Ball-bearing guide rails, Load capacity per drawer 70 kg, Sheet steel, corrosion resistant and scratch-proof powder-coated, GEDORE blue, GEDORE High-performance chassis: Total load capacity 1000 kg, in mobile operation 750 kg, 2 roller-bearing GEDORE high-performance wheels (fixed castors Ø 200 mm), 2 ball-bearing mounted GEDORE smooth-running wheels (swivel castors Ø 125 mm), both with total brakes, Even under maximum loads, the GEDORE trapezoidal axle construction ensures: smooth running, maneuverability and directional stability, Options: Ideal for equipping with GEDORE tool modules (1500 ES/1500 CT) maximum 9 pieces 1/3 modules possible per drawer, Rear panel R 1504 XL-L can be added, Further drawer combinations on request, Delivery without tools and accessories







Attributes
Colour
GEDORE blue, RAL 5017
Countertop dimension
1200 x 635 x 30 mm
Countertop thickness
30 mm
Dimension (L x W x H)
985 x 1.200 x 635 mm
Dynamic load capacity
750 kg
Einzelauszugssperre
Ja
Fixed castor diameter (2x)
200
Gesamtiefe
635 mm
Load capacity per drawer
70 kg
Material
Sheet steel
Net weight
130000 g
Nominal height
985 mm
Nominal length
675 mm
Nominal width
1245 mm
Number of drawers
5
Number of wheels
4
Static load capacity
1000 kg
Surface
Powder-coated
Swivel castor diameter with brakes (2x)
125
Total height
985 mm
Total length
635 mm
Total width
1200 mm
Working height
985
abschließbar
Ja
