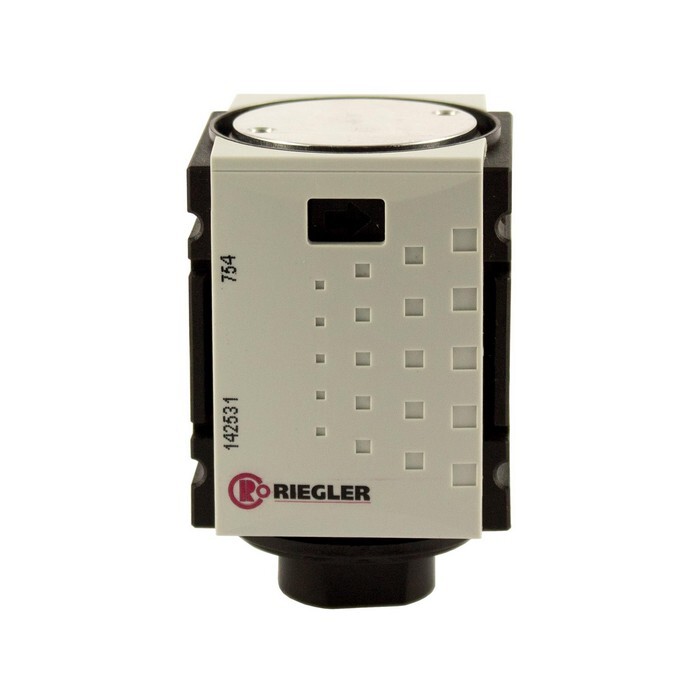

Check valve Futura-mini BG 0 G
1/4Item-no.: 1375262Supplier number: FUM 9401EAN: 4047322557566
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Check valve »FUTURA-mini«, Size 0, G 1/4, Input pressure 0.4 - 12 bar, Temperature -10 °C to 50 °C.
Attributes
A
43 mm
Connection thread
Plastic
Flow rate
1 → 2 750 l/min, 1 → 2.1 1000 l/min
Housing
PA66 GF60
Inlet pressure max.
12 bar
Inlet pressure min.
0,4 bar
Medium
Compressed air, neutral gases
Product range
FUTURA-mini
Riegler article number
142531
Screw thread
G 1/4
Sealing material
NBR
Size
0
Temperature range max.
50 °C
Temperature range min.
-10 °C
b
66 mm
c
27 mm
