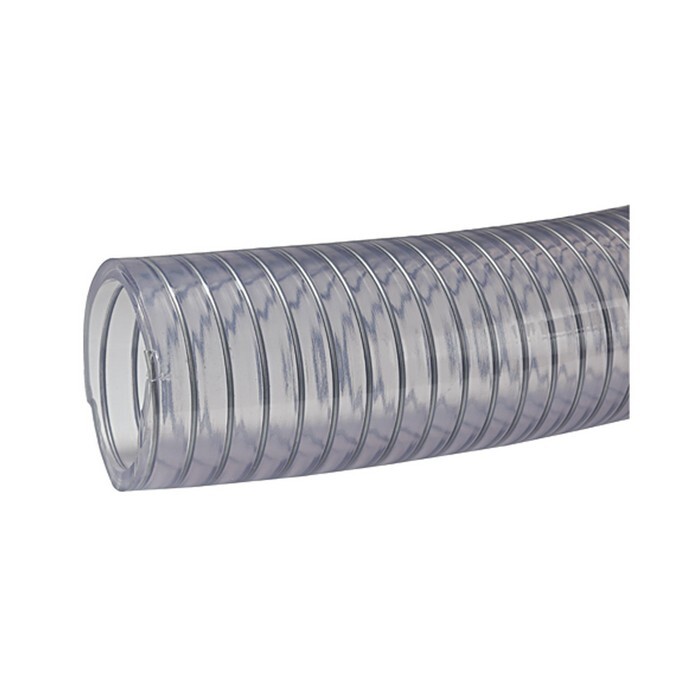

Suction & pressure hose
20x3.5 mm, transparent Armoflex, plasticItem-no.: 1130814Supplier number: 4480.020-50EAN: 4047322300469
PU (Roll): 50 MeterPU (Packaging): 50 MeterQuantity:
50 MeterPackable
Item available in 18 variants:
Price and stock visible after login
Description
Suction/pressure hose, Heavy-duty design, Temp. -15°C to 60°C, Vacuum 0.9 bar, Hose Ø 27x20, PN at 20 °C max. 8 bar, Roll of 50 m. Transparent plastic hose with spiral steel wire embedded in the wall. Suitable for process water, sludge and liquid manure under extreme conditions. Extremely flexible and non-toxic. Acc. to 2007/19/EC.
Attributes
Bending radius min.
60 mm
Hose-Ø inside
20 mm
Hose-Ø outer
27 mm
Max. operating pressure at 20 °C
8 bar
Riegler article number
113914
Roll length
50 m
Temperature range max.
60 °C
Temperature range min.
-15 °C
Vacuum
0.9 bar
