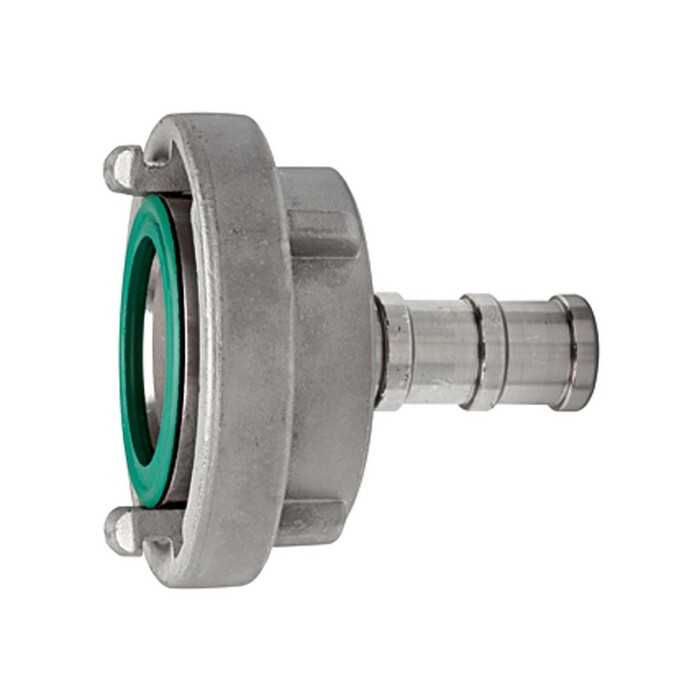

Saug- und Druckkupplung
100 mm Tülle, Storz 100 Edelstahl V4AItem-no.: 1735087Supplier number: 3401.115100EAN: 4047322255523
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Storz coupling, Hose supports, rotating, V4A, Storz size 100, I.D. 100, Operating pressure max. 16 bar, Temp. -15 °C to 200 °C. High-quality series in V4A stainless steel. For quick and simple hose connections. User friendly, the coupling elements are joined without damaging the seal. Applications: Industrial plant engineering, shipbuilding, chemical industry.
Attributes
Bracket spacing
115 mm
Hose LW
100 mm
Length (battery)
152,0 mm
Material
Stainless steel V4A
Max. operating pressure
16 bar
Operating temperature max.
200 °C
Operating temperature min.
-15 °C
Sealing material
FKM
Storz size
100
