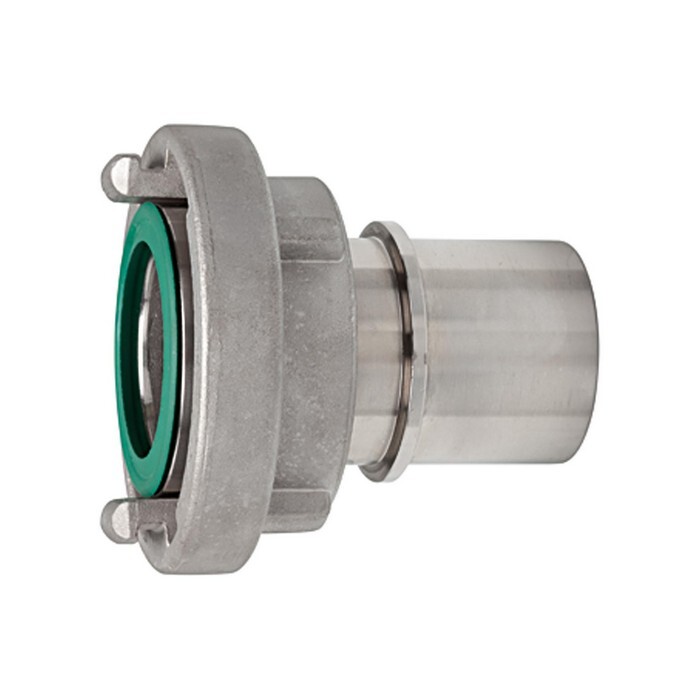

Saug- und Druckkupplung
25 mm Tülle, Storz 25-D, LW 25 Edelstahl V4AItem-no.: 1732974Supplier number: 3402.3125EAN: 4047322255554
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Storz coupling, Hose supports, for shell binding, rotating, V4A, Storz size 25-D, I.D. 25, Operating pressure max. 16 bar. High-quality series in V4A stainless steel. For quick and simple hose connections. User friendly, the coupling elements are joined without damaging the seal. Applications: Industrial plant engineering, shipbuilding, chemical industry.
Attributes
Bracket spacing
31 mm
Hose LW
25 mm
Length (battery)
74,0 mm
Material
Stainless steel V4A
Max. operating pressure
16 bar
Operating temperature max.
200 °C
Operating temperature min.
-15 °C
Sealing material
FKM
Storz size
25-D
