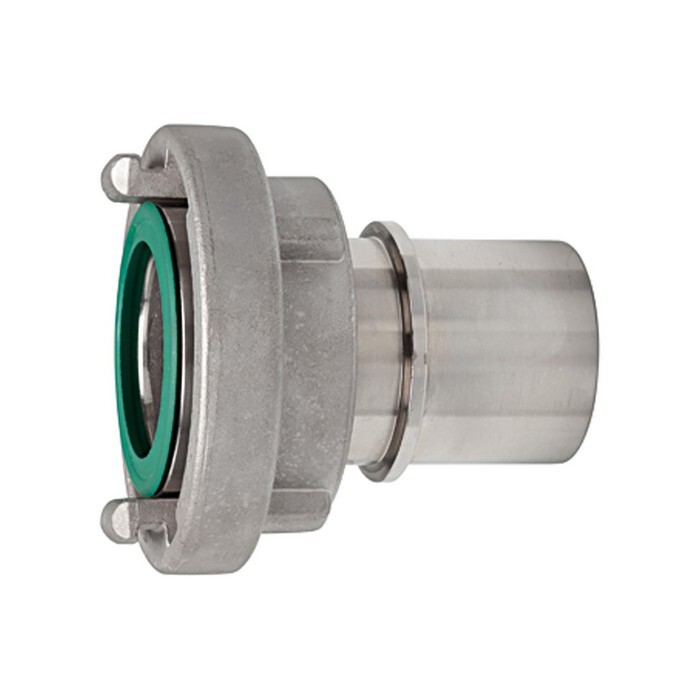

Saug- und Druckkupplung
38 mm Tülle, Storz 52-C, LW 38 Edelstahl V4AItem-no.: 1732975Supplier number: 3402.6638EAN: 4047322255561
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Storz coupling, Hose supports, for shell binding, rotating, V4A, Storz size 52-C, I.D. 38, Operating pressure max. 16 bar. High-quality series in V4A stainless steel. For quick and simple hose connections. User friendly, the coupling elements are joined without damaging the seal. Applications: Industrial plant engineering, shipbuilding, chemical industry.
Attributes
Betriebsdruck max.
16 bar
Betriebstemperatur max.
200 °C
Betriebstemperatur min.
-15 °C
Dichtmaterial
FKM
Knaggenabstand
66 mm
Länge
90,0 mm
Material
Edelstahl V4A
Schlauch LW
38 mm
Storz-Größe
52-C
