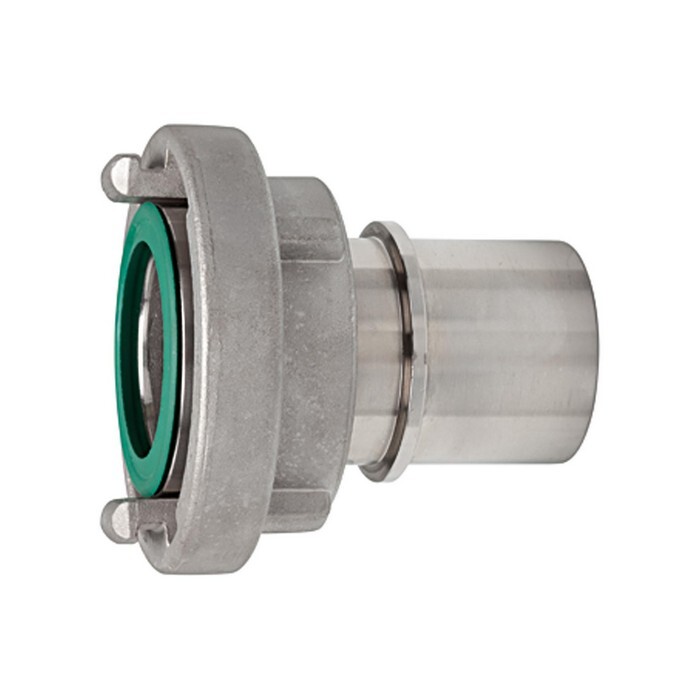

Saug- und Druckkupplung
75 mm Tülle, Storz 75-B, LW 75 Edelstahl V4AItem-no.: 1732977Supplier number: 3402.8975EAN: 4047322255585
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
Storz coupling, Hose supports, for shell binding, rotating, V4A, Storz size 75-B, I.D. 75, Operating pressure max. 16 bar. High-quality series in V4A stainless steel. For quick and simple hose connections. User friendly, the coupling elements are joined without damaging the seal. Applications: Industrial plant engineering, shipbuilding, chemical industry.
Attributes
Bracket spacing
89 mm
Hose LW
75 mm
Length (battery)
114,0 mm
Material
Stainless steel V4A
Max. operating pressure
16 bar
Operating temperature max.
200 °C
Operating temperature min.
-15 °C
Sealing material
FKM
Storz size
75-B
