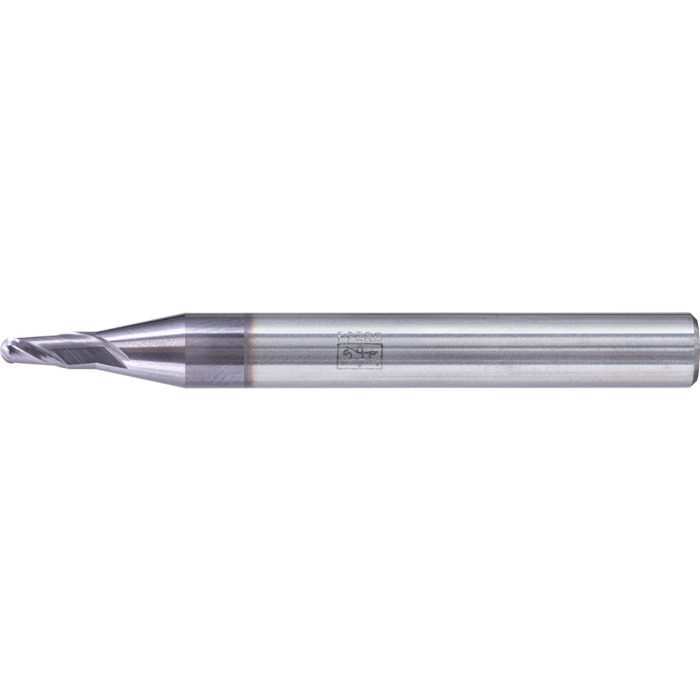

End mill
SCM-UB2-M030R-S54HA6 AL40 PferdItem-no.: 1662429Supplier number: 23000100EAN: 4007220462898
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The solid tungsten carbide end mills are suitable for universal use on a variety of materials. End mills for free-form profile cutting. Smooth straight shank HA in accordance with DIN 6535.
Attributes
Coat
TiAlN
Corner design
Corner design Radius
Corner radius RE
1.5 mm
Cutting edge ø DC
3 mm
Cutting material
AL40
Effective length LU
7.5 mm
Feed direction
x,y,z
Head length LH
14.5 mm
Inner cooling lubricant supply
No
Maximum cutting depth APMX
5 mm
Neck ø DN
3 mm
Neu im Jahr
2023
Norm
Factory standard
Number of teeth ZEFP
2 Piece
Overall length LF
54 mm
Series
byly_SCM_UB2_1510
Shaft shape
HA (DIN6535)
Shaft-Ø d2 DCON
6 mm
Spiral angle
30°
Version
Full radius milling cutter
