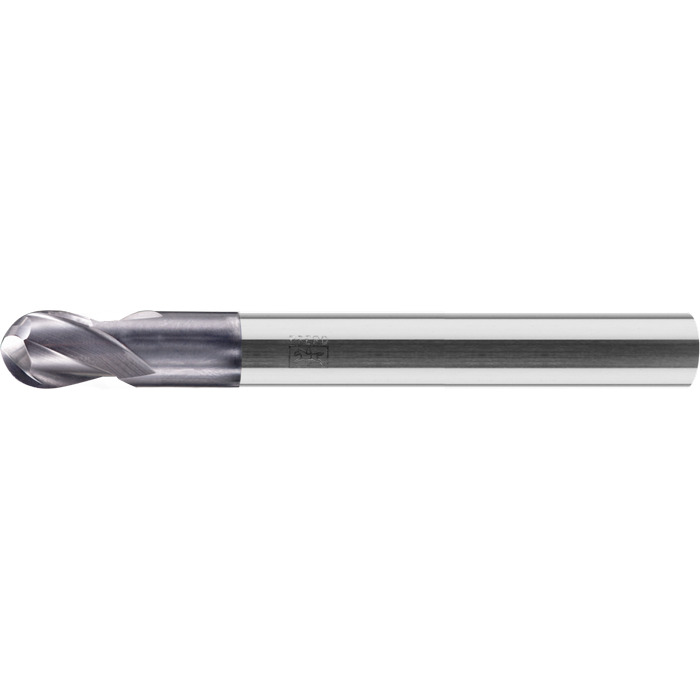

End mill
SCM-UB2-M060R-S100HA AL40 PferdItem-no.: 1662441Supplier number: 23000111EAN: 4007220463000
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The solid tungsten carbide end mills are suitable for universal use on a variety of materials. End mills for free-form profile cutting. Extra long, smooth HA straight shank in accordance with DIN 6535.
Attributes
Coat
TiAlN
Corner design
Corner design Radius
Corner radius RE
3 mm
Cutting edge ø DC
6 mm
Cutting material
AL40
Feed direction
x,y,z
Inner cooling lubricant supply
No
Maximum cutting depth APMX
10 mm
Neu im Jahr
2023
Norm
Factory standard
Number of teeth ZEFP
2 Piece
Overall length LF
100 mm
Series
byly_SCM_UB2_1510
Shaft shape
HA (DIN6535)
Shaft-Ø d2 DCON
6 mm
Spiral angle
30°
Version
Full radius milling cutter
