End mill
SCM-UB2-M100R-S100HA AL40 PferdItem-no.: 1662478Supplier number: 23000113EAN: 4007220463024
Quantity:
1 PiecePackable
Price and stock visible after login
Description

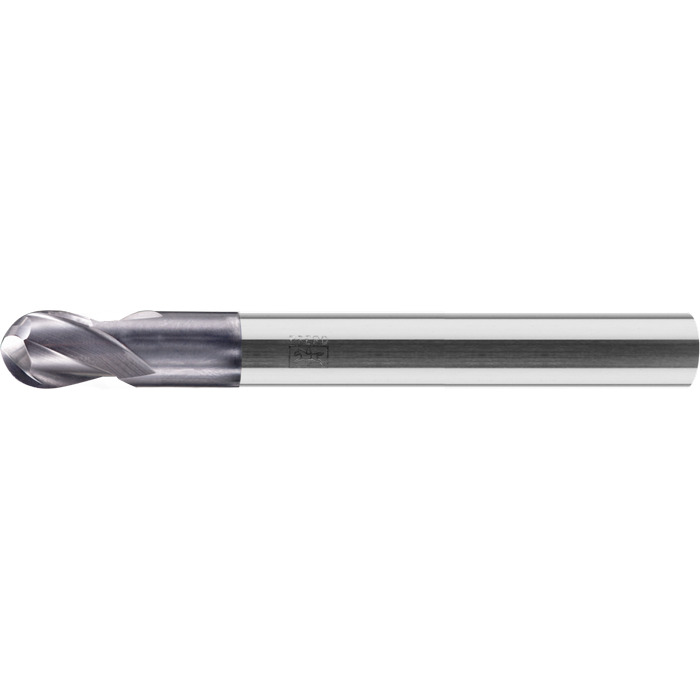

The solid tungsten carbide end mills are suitable for universal use on a variety of materials. End mills for free-form profile cutting. Extra long, smooth HA straight shank in accordance with DIN 6535.
Attributes
Coat
TiAlN
Corner design
Corner design Radius
Corner radius RE
5 mm
Cutting edge ø DC
10 mm
Cutting material
AL40
Feed direction
x,y,z
Inner cooling lubricant supply
No
Maximum cutting depth APMX
14 mm
Neu im Jahr
2023
Norm
Factory standard
Number of teeth ZEFP
2 Piece
Overall length LF
100 mm
Series
byly_SCM_UB2_1510
Shaft shape
HA (DIN6535)
Shaft-Ø d2 DCON
10 mm
Spiral angle
30°
Version
Full radius milling cutter
