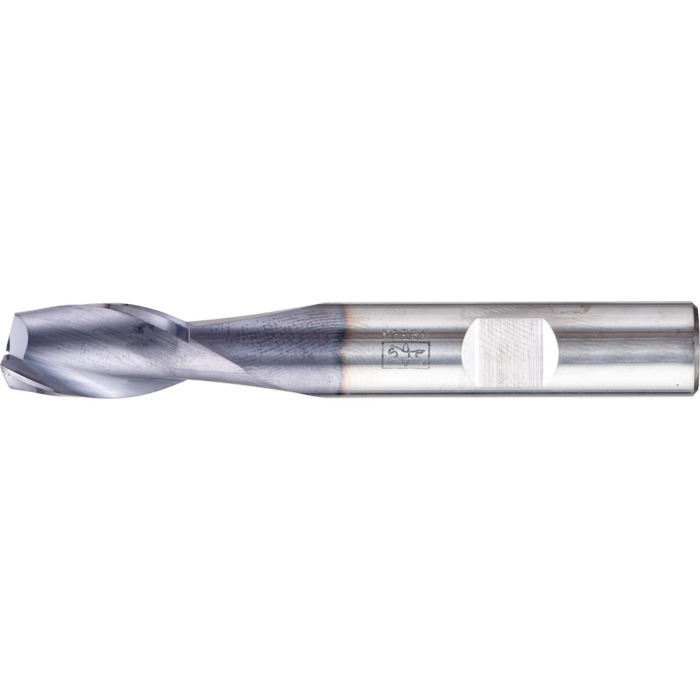

End mill
SCM-UC2-M100S-S72HB AL40 PferdItem-no.: 1662453Supplier number: 23000128EAN: 4007220462171
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The solid tungsten carbide end mills are suitable for universal use on a variety of materials. End mills for full slot milling, drill slot milling and for roughing with high contact widths. Weldon shank HB in accordance with DIN 6535 with lateral driving surface.
Attributes
Coat
TiAlN
Corner design
Execution of corners Sharp
Cutting edge ø DC
10 mm
Cutting material
AL40
Feed direction
x,y,z
Inner cooling lubricant supply
No
Maximum cutting depth APMX
19 mm
Neu im Jahr
2023
Norm
DIN 6527 Long
Number of teeth ZEFP
2 Piece
Overall length LF
72 mm
Series
byly_SCM_UC_1510
Shaft shape
HB (DIN6535)
Shaft-Ø d2 DCON
10 mm
Spiral angle
30°
Version
90° sharp
