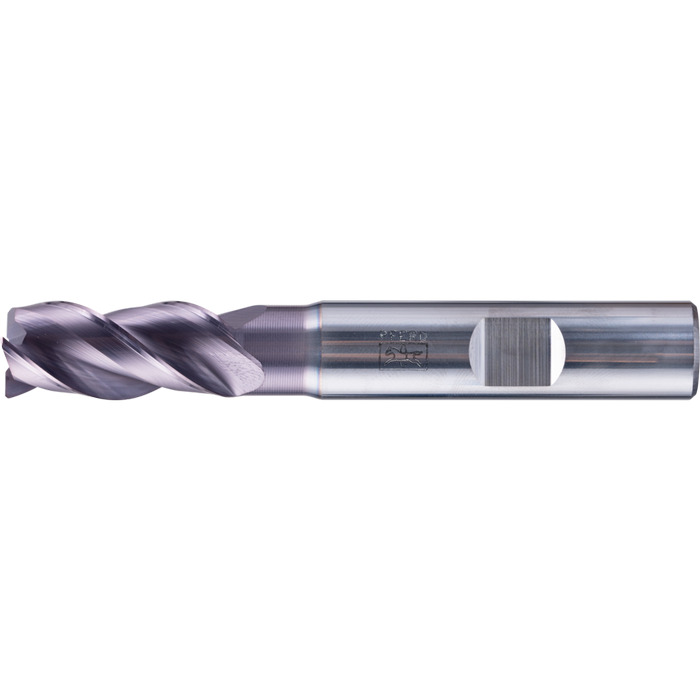

End mill
SCM-UC3-M120C-M83HB AL40 PferdItem-no.: 1662469Supplier number: 23000137EAN: 4007220462362
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The solid tungsten carbide end mills are suitable for universal use on a variety of materials. End mills for full slot milling, drill slot milling and for a wide range of roughing tasks. Weldon shank HB in accordance with DIN 6535 with lateral driving surface.
Attributes
Chamfer width CHW
0.3 mm
Coat
TiAlN
Corner design
Bevelled corner design
Cutting edge ø DC
12 mm
Cutting material
AL40
Effective length LU
36 mm
Feed direction
x,y,z
Head length LH
37.8 mm
Inner cooling lubricant supply
No
Maximum cutting depth APMX
26 mm
Neck ø DN
11 mm
Neu im Jahr
2023
Norm
Factory standard
Number of teeth ZEFP
3 Piece
Overall length LF
83 mm
Series
byly_SCM_UC_1510
Shaft shape
HB (DIN6535)
Shaft-Ø d2 DCON
12 mm
Spiral angle
38°/40°/42°
Version
90° with bevel
