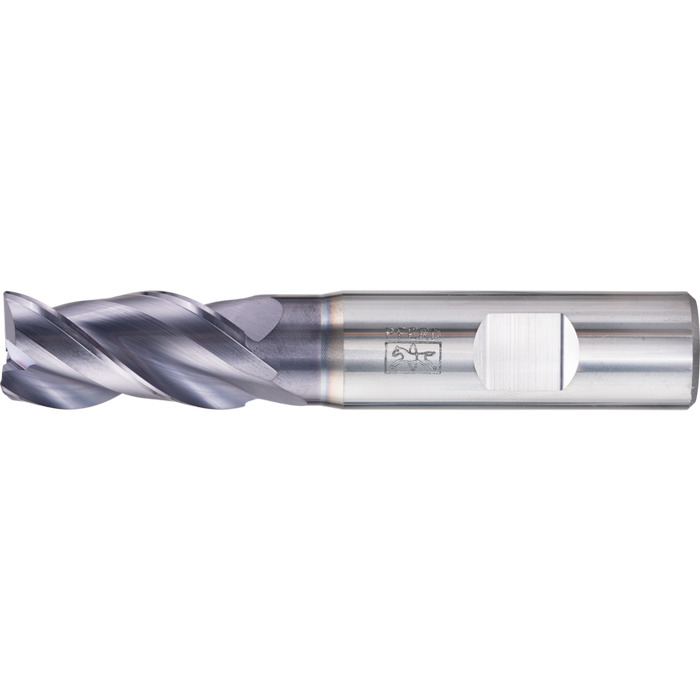

End mill
SCM-UC3-M160C-M92HB AL40 PferdItem-no.: 1662483Supplier number: 23000138EAN: 4007220462393
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The solid tungsten carbide end mills are suitable for universal use on a variety of materials. End mills for full slot milling, drill slot milling and for a wide range of roughing tasks. Weldon shank HB in accordance with DIN 6535 with lateral driving surface.
Attributes
Chamfer width CHW
0.3 mm
Coat
TiAlN
Corner design
Bevelled corner design
Cutting edge ø DC
16 mm
Cutting material
AL40
Effective length LU
42 mm
Feed direction
x,y,z
Head length LH
41.8 mm
Inner cooling lubricant supply
No
Maximum cutting depth APMX
32 mm
Neck ø DN
15 mm
Neu im Jahr
2023
Norm
Factory standard
Number of teeth ZEFP
3 Piece
Overall length LF
92 mm
Series
byly_SCM_UC_1510
Shaft shape
HB (DIN6535)
Shaft-Ø d2 DCON
16 mm
Spiral angle
38°/40°/42°
Version
90° with bevel
