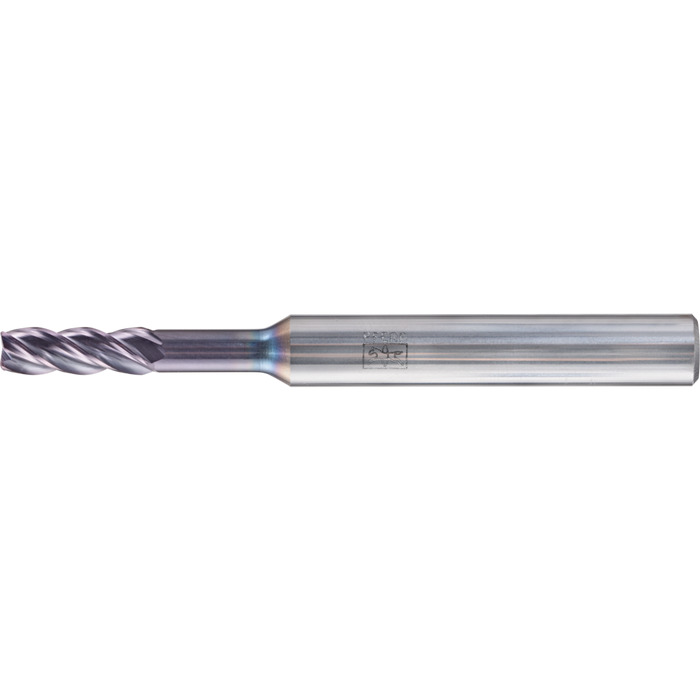

End mill
SCM-UC4-M040C-M57HA6 AL40 PferdItem-no.: 1662412Supplier number: 23000149EAN: 4007220462522
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The solid tungsten carbide end mills are suitable for universal use on a variety of materials. End mills for various applications, from roughing through to finishing. The chamfer design is also suitable for ramping. Smooth straight shank HA in accordance with DIN 6535.
Attributes
Chamfer width CHW
0.13 mm
Coat
TiAlN
Corner design
Bevelled corner design
Cutting edge ø DC
4 mm
Cutting material
AL40
Effective length LU
21 mm
Feed direction
x,y,(z)
Head length LH
24 mm
Inner cooling lubricant supply
No
Maximum cutting depth APMX
11 mm
Neck ø DN
3.6 mm
Neu im Jahr
2023
Norm
DIN 6527 Long
Number of teeth ZEFP
4 Piece
Overall length LF
57 mm
Series
byly_SCM_UC_1510
Shaft shape
HA (DIN6535)
Shaft-Ø d2 DCON
6 mm
Spiral angle
35°/38°
Version
90° with bevel
