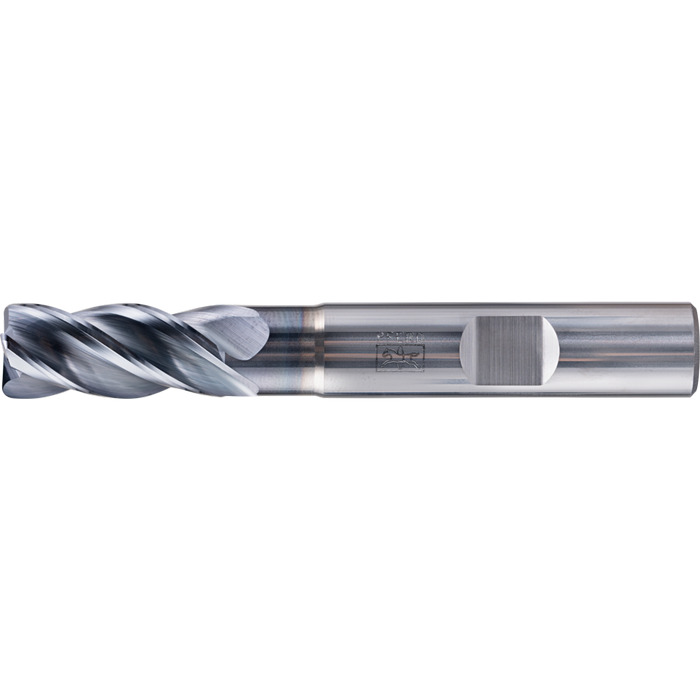

End mill
SCM-UC4-M100R20-M72HB AL40 PferdItem-no.: 1662463Supplier number: 23000164customs tariff number: 82077010EAN: 4007220462683
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The solid tungsten carbide end mills are suitable for universal use on a variety of materials. End mills for various applications, from roughing through to finishing. The radius design is also suitable for free-form profile cutting. Weldon shank HB in accordance with DIN 6535 with lateral driving surface.
Attributes
Coat
TiAlN
Corner design
Corner design Radius
Corner radius RE
2 mm
Cutting edge ø DC
10 mm
Cutting material
AL40
Effective length LU
32 mm
Feed direction
x,y,(z)
Inner cooling lubricant supply
No
Maximum cutting depth APMX
22 mm
Neck ø DN
9.5 mm
Neu im Jahr
2023
Norm
DIN 6527 Long
Number of teeth ZEFP
4 Piece
Overall length LF
72 mm
Series
byly_SCM_UC_1510
Shaft shape
HB (DIN6535)
Shaft-Ø d2 DCON
10 mm
Spiral angle
35°/38°
Version
90° with radius
