Tray folding handle
GN 825.2-90-WS with spring return, CleanlineItem-no.: 1353634Supplier number: 825.2-90-WScustoms tariff number: 39263000EAN: 4045525384705
Quantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description
The folding handles with recessed tray GN 825.2 are used if the handle is to protrude by a maximum of 3 mm when folded down. After releasing the handle, it returns to its starting position by spring-loaded return.

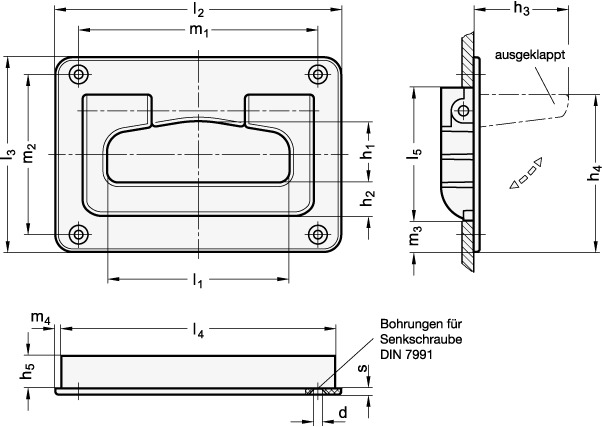

Attributes
Colour
WS - white, RAL 9002, matt
L2
141
Length l1
90
Material handle
KU - Plastic
RoHS
Ja
Weight
0.150 kg
d
4.2
h1
29
h2
16.5
h3
47
h4
77
h5
16
l3
96
l4
135
l5
65
m1
118
m2
79
m3
16
m4
3
s
3
