Silencer
AG 1/2", 0-8 bar, max 250°C Sintered bronze, flatItem-no.: 1116905Supplier number: 569-4customs tariff number: 84819000EAN: 4047322101349
Quantity:
1 PiecePackable
Item available in 7 variants:
Price and stock visible after login
Description

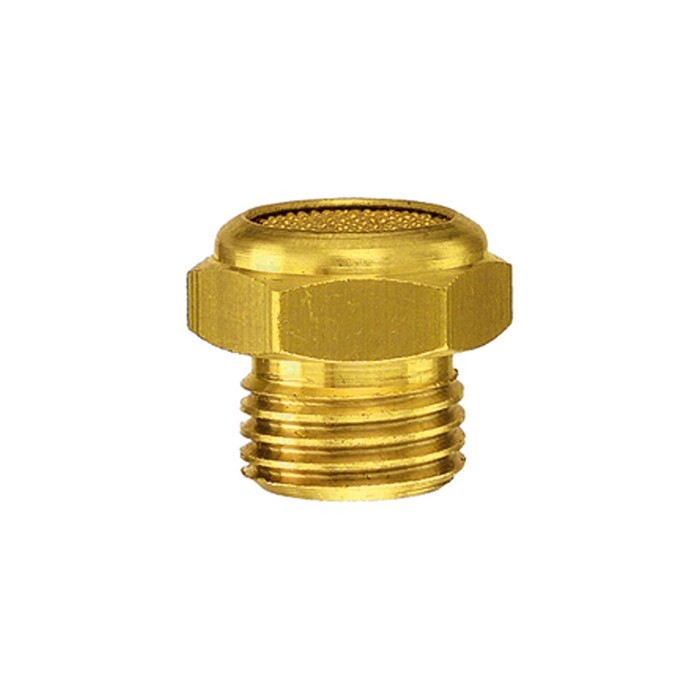

Sintered bronze silencer, flat, G 1/2 o., AF 24, Operating pressure 0 - 8 bar, Operating temperature -10 °C to 250 °C. For reducing the exhaust noise generated by pneumatic equipment.
Attributes

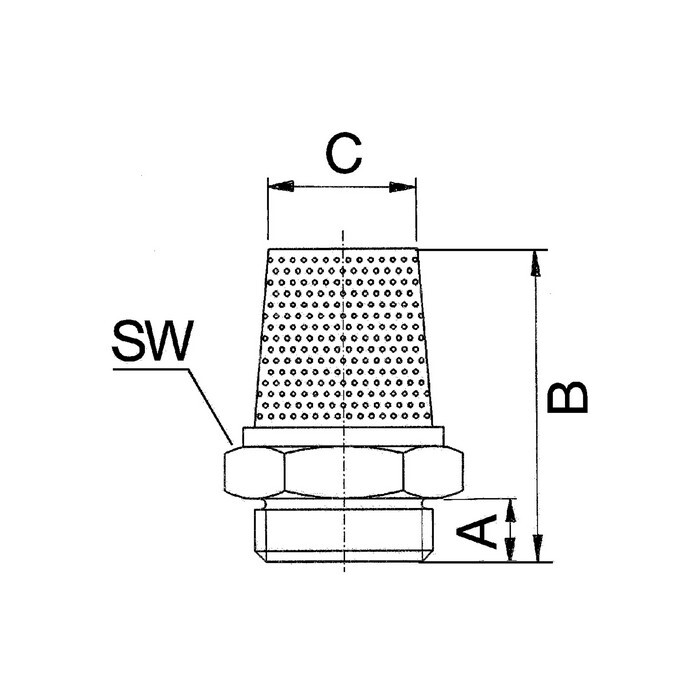

A
9,0 mm
Description
Silencer
Max. operating pressure
8 bar
Noise level at 6 bar
71-108 dB(A)
Operating pressure min.
0 bar
Operating temperature max.
250 °C
Operating temperature min.
-10 °C
Riegler article number
101472
SW
24 mm
Screw thread
G 1/2
b
18,5 mm
c
23,0 mm
