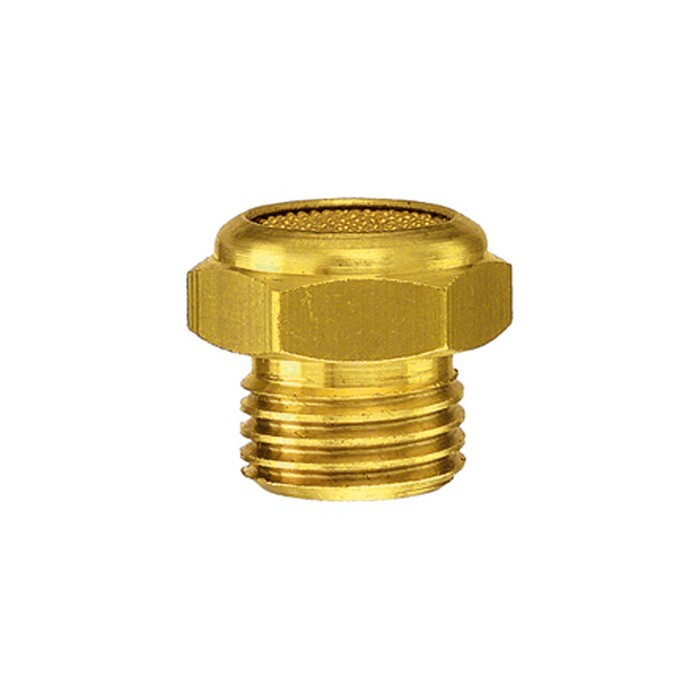

Silencer
AG M 5 0-8 bar, max 250°C Sintered bronze, flatItem-no.: 1116909Supplier number: 569-0customs tariff number: 84819000EAN: 4047322101301
Quantity:
1 PiecePackable
Item available in 7 variants:
Price and stock visible after login
Description
Sintered bronze silencer, flat, M5 o., AF 8, Operating pressure 0 - 8 bar, Operating temperature -10 °C to 250 °C. For reducing the exhaust noise generated by pneumatic equipment.

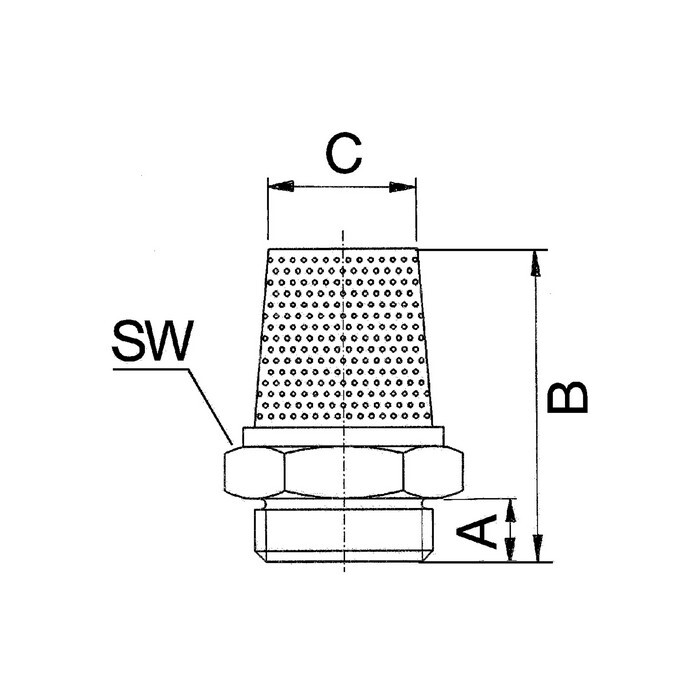

Attributes
A
4,0 mm
Max. operating pressure
8 bar
Noise level at 6 bar
71-108 dB(A)
Operating pressure min.
0 bar
Operating temperature max.
250 °C
Operating temperature min.
-10 °C
Riegler article number
113333
SW
8 mm
Screw thread
M5
b
8,0 mm
c
7,8 mm
