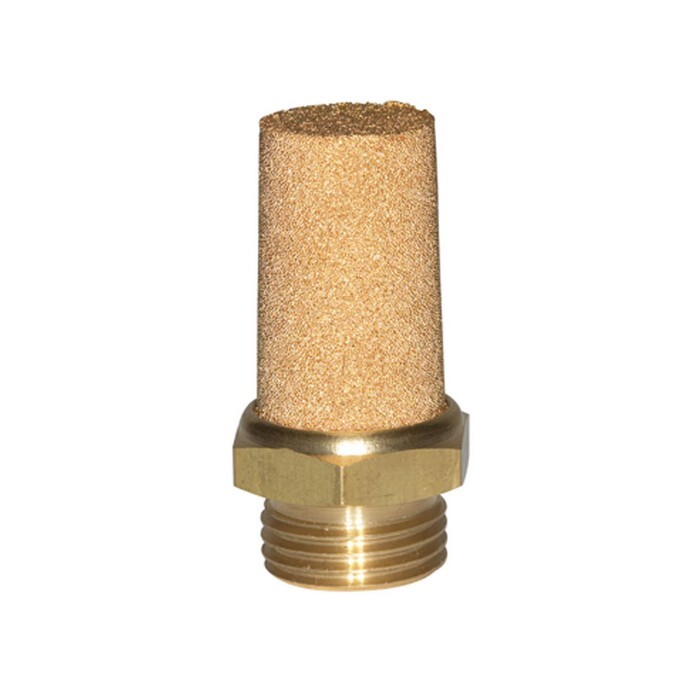

Silencer series value line
AG 3/8", 0-10 bar, -10°C - 200°C SW22, sintered bronze/ brassItem-no.: 1176028Supplier number: 567-3/MEEAN: 4047322227049
Quantity:
1 PiecePackable
Item available in 5 variants:
Price and stock visible after login
Description
Sintered bronze silencer »value line«, Hexagonal, G 3/8, Operating pressure max. 10 bar, Operating temperature -10 °C to 200 °C. For reducing the exhaust noise generated by pneumatic equipment.
Attributes
A
9 mm
Max. operating pressure
10 bar
Noise level at 6 bar
80 ~ 90 dB(A)
Operating temperature max.
200 °C
Operating temperature min.
-10 °C
Riegler article number
116284
SW
22 mm
Screw thread
G 3/8
b
41,7 mm
c
14 mm
