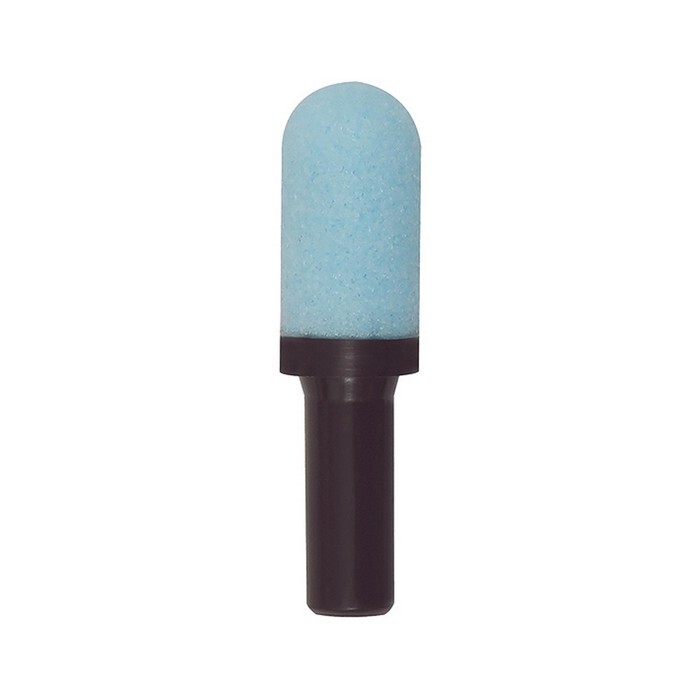

Silencer with plug-in nipple
for hose 12 mm max 10 barItem-no.: 1247094Supplier number: 566.012EAN: 4047322391832
Quantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description
Silencer with plug nipple, »Blue Series«, plug nipple 12 mm, pmax short term 15bar, Plastic. Push-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic. Only recommended for use in combination with quick connectors of the �Blue Series�. Suitability testing for use with other series is the responsibility of the user.
Attributes
Application range
Air, vacuum
Arbeitsdruck max. kurzzeitig
15 bar
L1
81,5 mm
Loosening ring
Plastic
Material
Plastic
Medium
Compressed air
Plug nipple
12 mm
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
109941
Series
Blue series
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
10 bar
Working pressure min.
-0,95 bar
