Ganter

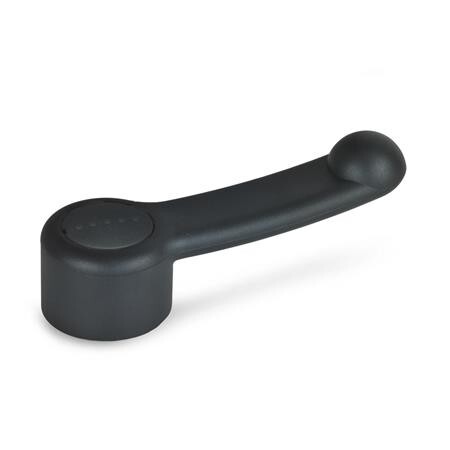

Shift handle, cap black-grey

GN 623-46-V12-DSG
PA - plastic, polyamide
Item-no.: 1480917Supplier number: 623-46-V12-DSGEAN: 4045525450943

Quantity: ​​ 1 PiecePackable
Item available in 96 variants:
Short-term Sourcing

Description
Design and handling of the gear levers GN 623 comply with the requirements and claims of the Ergostyle® product family. The cap covers attachment elements (see installation example) as well as protruding or recessed shafts.
Attributes
Bore identification
V - with square
Colour cover cap
DSG - black-grey, RAL 7021, matt
Filtercolumn
B 12
L
110
Material
PA - plastic, polyamide
R
17.5
RoHS
Ja
Switch lever diameter d1
46
Weight
0.110 kg
b
29
d2
12
d3
22
d4
31.5
d5
25.5
d6
17
d7
6
h1
35
h2
54
h3
36
h4
24
h5
2
h6
8
k
32
s
6.5
t
15.5
