Gear lever with groove
GN 211-55-K14 Burnished steelST - Stahl
Item-no.: 1190830Supplier number: 211-55-K14customs tariff number: 84879059EAN: 4045525084193
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Control levers GN 211 can be used in connection with indexing elements, grooves for angle limitations and such like due to their comparably big hub diameter. Spring plungers as well as indexing plungers can be used as indexing elements.
Attributes
Bore identification
K - with hub groove DIN 6885-1 P9
Filtercolumn
B 14

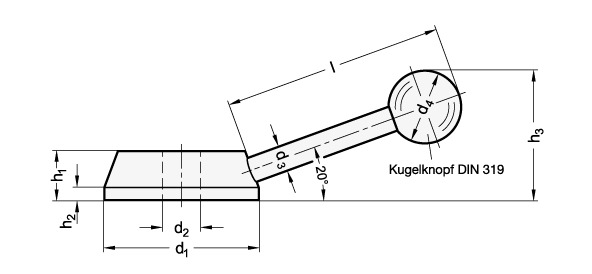

Length l
96
Length l ≈ Length l
96
Material
ST - Steel
RoHS
Ja
Switch lever diameter d1
55
Weight
0.316 kg
d2
14
d3
10
d4
25
h1
18
h2
5
h3
52
h3 ≈
52
