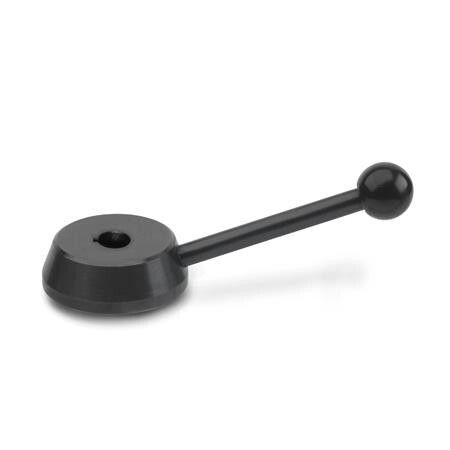

Gear lever with groove
GN 211-80-K20 Burnished steelST - Stahl
Item-no.: 1190833Supplier number: 211-80-K20customs tariff number: 84879059EAN: 4045525084407
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Control levers GN 211 can be used in connection with indexing elements, grooves for angle limitations and such like due to their comparably big hub diameter. Spring plungers as well as indexing plungers can be used as indexing elements.
Attributes
Bore identification
K - with hub groove DIN 6885-1 P9
Filtercolumn
B 20
Length l
138
Length l ≈ Length l
138
Material
ST - Steel
RoHS
Ja
Switch lever diameter d1
80
Weight
0.950 kg
d2
20
d3
14
d4
35
h1
24
h2
6
h3
74
h3 ≈
74
