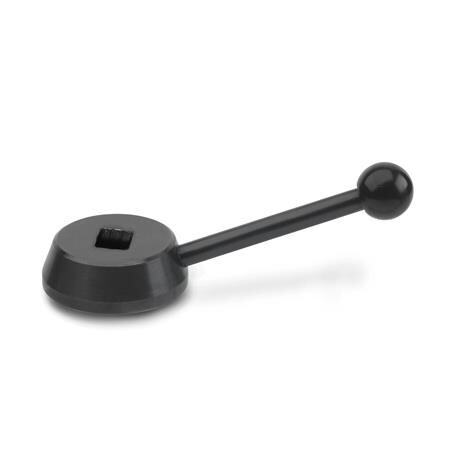

Gear lever with square
GN 211-50-V12 Burnished steelST - Stahl
Item-no.: 1190828Supplier number: 211-50-V12customs tariff number: 84879059EAN: 4045525084162
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Control levers GN 211 can be used in connection with indexing elements, grooves for angle limitations and such like due to their comparably big hub diameter. Spring plungers as well as indexing plungers can be used as indexing elements.
Attributes
Bore identification
V - with square DIN 79
Filtercolumn
B 12

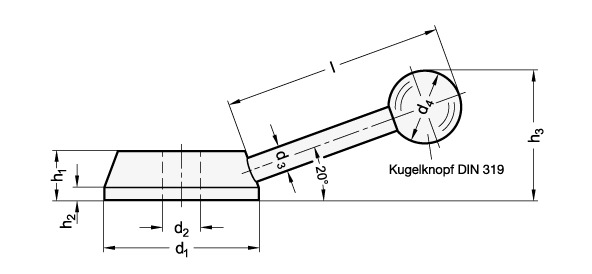

Length l
82
Length l ≈ Length l
82
Material
ST - Steel
RoHS
Ja
Switch lever diameter d1
50
Weight
0.238 kg
d2
12
d3
8
d4
20
h1
17
h2
5
h3
45
h3 ≈
45
