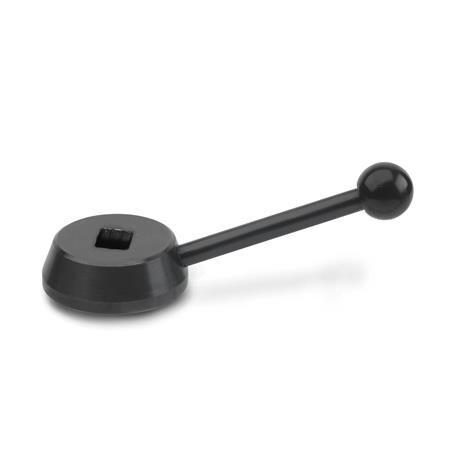

Gear lever with square
GN 211-55-V14ST - Stahl
Item-no.: 1394218Supplier number: 211-55-V14customs tariff number: 84879059EAN: 4045525084216
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Control levers GN 211 can be used in connection with indexing elements, grooves for angle limitations and such like due to their comparably big hub diameter. Spring plungers as well as indexing plungers can be used as indexing elements.
Attributes
Bore identification
V - with square DIN 79
Filtercolumn
B 14
Length l
96
Length l ≈ Length l
96
Material
ST - Steel
RoHS
Ja
Switch lever diameter d1
55
Weight
0.321 kg
d2
14
d3
10
d4
25
h1
18
h2
5
h3
52
h3 ≈
52
