Gear lever with square
GN 211-65-V16ST - Stahl
Item-no.: 1217884Supplier number: 211-65-V16customs tariff number: 84879059EAN: 4045525084322
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Control levers GN 211 can be used in connection with indexing elements, grooves for angle limitations and such like due to their comparably big hub diameter. Spring plungers as well as indexing plungers can be used as indexing elements.
Attributes
Bore identification
V - with square DIN 79
Filtercolumn
B 16
Length l
110
Length l ≈ Length l
110
Material
ST - Steel
RoHS
Ja
Switch lever diameter d1
65
Weight
0.509 kg

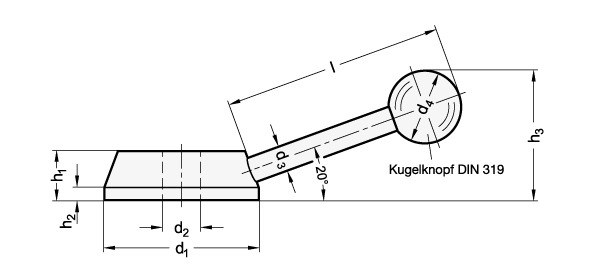

d2
16
d3
12
d4
30
h1
20
h2
5
h3
60
h3 ≈
60
