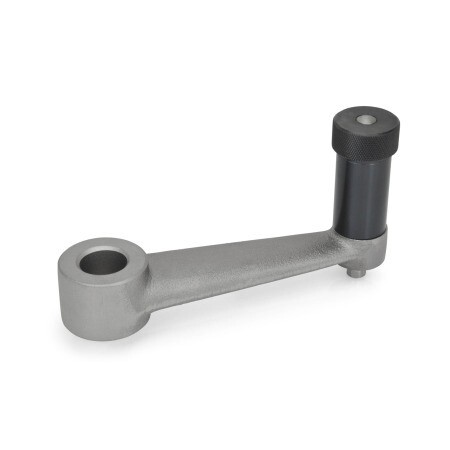

Gearshift crank
GN 558-165-B24 GGG, boreholeGGG - Gusseisen (GGG)
Item-no.: 1205961Supplier number: 558-165-B24customs tariff number: 84879059EAN: 4045525293786
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Indexing cranked handles GN 558 are for positioning mechanisms. Other standard machine elements for positioning of spindles: - Indexing Mechanisms GN 200 - Indexing Levers GN 215 - Adjustable Knobs GN 700 (with Stepless Positioning)
Attributes
Bore identification
B - without hub groove
Bore labelling
B - without hub groove

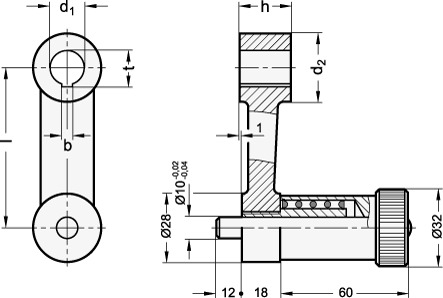

Borehole d1
24
Crank length l
165
Material
GGG - Cast iron (GGG)
RoHS
Ja
Weight
0.994 kg
b
8
d2
44
h
36
t
25.7
