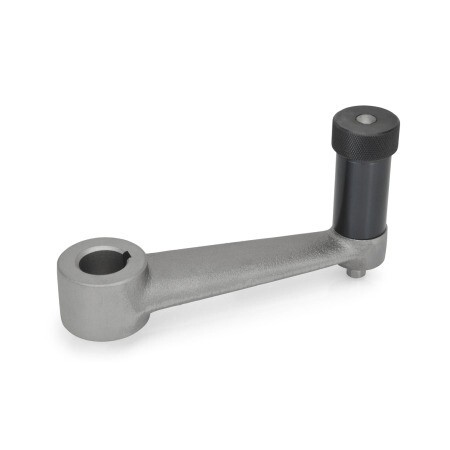

Gearshift crank
GN 558-165-K24 GGG, bore with grooveGGG - Gusseisen (GGG)
Item-no.: 1205962Supplier number: 558-165-K24customs tariff number: 84879059EAN: 4045525293809
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Indexing cranked handles GN 558 are for positioning mechanisms. Other standard machine elements for positioning of spindles: - Indexing Mechanisms GN 200 - Indexing Levers GN 215 - Adjustable Knobs GN 700 (with Stepless Positioning)

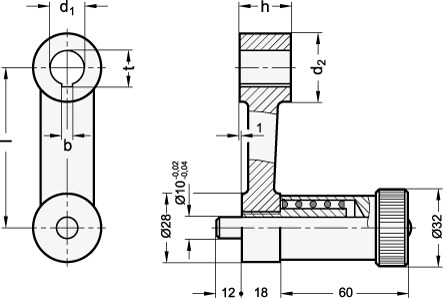

Attributes
Bore identification
K - with hub groove DIN 6885-2 P9
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole d1
24
Crank length l
165
Material
GGG - Cast iron (GGG)
RoHS
Ja
Weight
0.988 kg
b
8
d2
44
h
36
t
25.7
