Gearshift crank
GN 558-75-B16 GGG, boreholeGGG - Cast iron (GGG)
Item-no.: 1205963Supplier number: 558-75-B16EAN: 4045525293977
Quantity:
1 PiecePackable
Item available in 10 variants:
Price and stock visible after login
Description

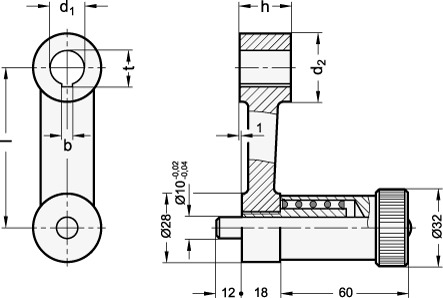

Indexing cranked handles GN 558 are for positioning mechanisms. Other standard machine elements for positioning of spindles: - Indexing Mechanisms GN 200 - Indexing Levers GN 215 - Adjustable Knobs GN 700 (with Stepless Positioning)
Attributes
Bore identification
B - without hub groove
Bore labelling
B - without hub groove
Borehole d1
16
Crank length l
75
Material
GGG - Cast iron (GGG)
RoHS
Ja
Weight
0.510 kg
b
5
d2
32
h
24
t
17.3
