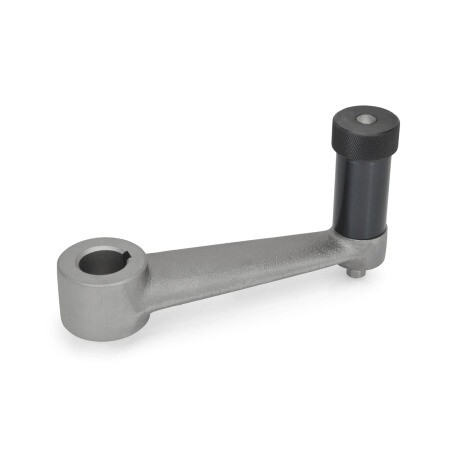

Gearshift crank
GN 558-90-K18 GGG, bore with grooveGGG - Gusseisen (GGG)
Item-no.: 1205966Supplier number: 558-90-K18customs tariff number: 84879059EAN: 4045525294042
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Indexing cranked handles GN 558 are for positioning mechanisms. Other standard machine elements for positioning of spindles: - Indexing Mechanisms GN 200 - Indexing Levers GN 215 - Adjustable Knobs GN 700 (with Stepless Positioning)

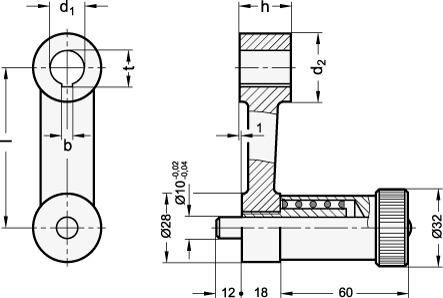

Attributes
Bore identification
K - with hub groove DIN 6885-2 P9
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole d1
18
Crank length l
90
Material
GGG - Cast iron (GGG)
RoHS
Ja
Weight
0.583 kg
b
6
d2
34
h
26
t
19.7
