Description

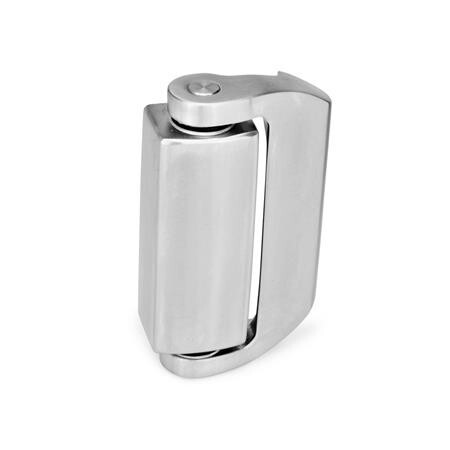

With the exception of the connector plug, the hinge without safety switch GN 139.6 do not differ in their external appearance from hinges with safety switch GN 139.5. With the concealed screw connection at the back, the hinge is also tamper-proof. The compact design combines safety and attractive appearance. The design with broad hinge halves is intended for mounting to glass or polycarbonate doors.
Attributes
Length l2
126
Material
NF - Stainless steel investment casting
RoHS
Ja
Weight
0.909 kg
Width l1
76
h1
15.5
h2
31.5
l3
40
l4
99.4
l5
22
m1
88
m2
29
m3
41
m4
9
