Hinge
GN 127-ZD-76-60-H-SW Height adjustableZD - Zink-Druckguss
Item-no.: 1476054Supplier number: 127-ZD-76-60-H-SWcustoms tariff number: 83021000EAN: 4045525573567
Quantity:
1 PiecePackable
Price and stock visible after login
Description

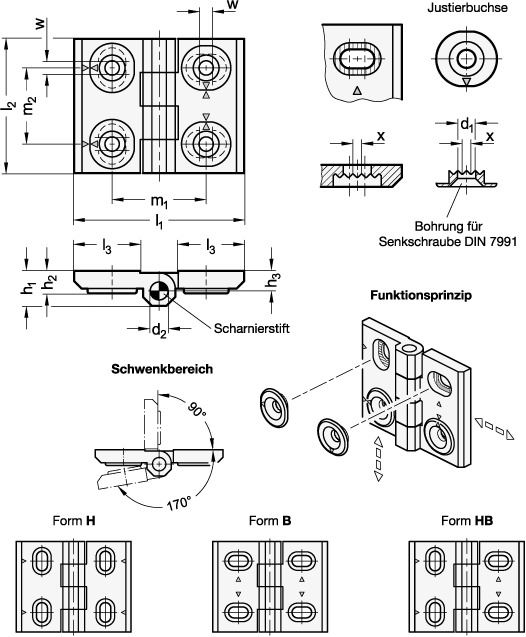

With hinges GN 127 doors and covers can be positioned snugly and in a finely adjusted manner by moving the adjusting bushings. In this way, door gaps can be readjusted and manufacturing tolerances can be compensated. The arrowheads mark the middle of the adjustable range w.
Attributes
Form
H - height adjustable
Length l2
60
Material
ZD - Zinc die casting
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.204 kg
Width l1
76
d1
6.5
d2
8
h1
15
h2
9
h3
8.5
l3
33.5
m1
42
m2
34
w Verstellbereich
4
x
1
