Hinge
GN 151.3-40-40-4,5-SH Elesa 4045525746879PA - plastic, polyamide
Item-no.: 1189478Supplier number: 151.3-40-40-4,5-SHEAN: 4045525746879
PU (Packaging): 20 PieceQuantity:
1 PiecePackable
Item available in 7 variants:
Price and stock visible after login
Description
The covers of the hinges GN 151.3 conceal the fixing elements and lend the hinges an attractive optical appearance.

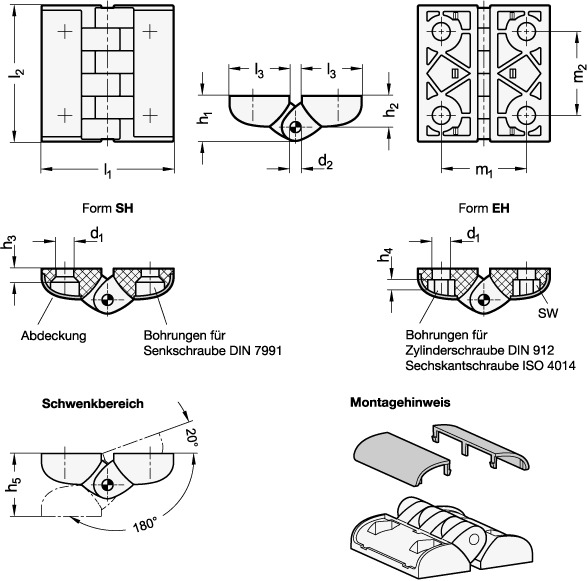

Attributes
Actual dimension
38
Borehole diameter d1
4.5
Borehole spacing
7
Form
SH - 2x2 holes for countersunk screws
Length l2
40
Material
PA - plastic, polyamide
RoHS
Ja
Weight
0.029 kg
Width l1
40
d2
3
h1
13
h2
9
h3
4.5
h4
4
h5
18
l3
17.5
m1
25
m2
25
