Hinge
GN 237-ZD-120-60-C-SW black KU-coatedZD - Zinc die casting
Item-no.: 1217464Supplier number: 237-ZD-120-60-C-SWcustoms tariff number: 83021000EAN: 4045525876514
Quantity:
1 PiecePackable
Item available in 20 variants:
Price and stock visible after login
Description
Hinges GN 237 with horizontally elongated hinge wings are made in a compact and sturdy design. They are used when larger spacings are required for the attachment bore holes.

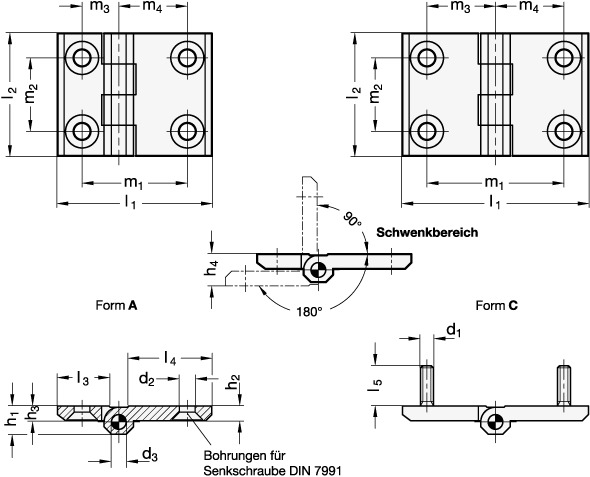

Attributes
Form
C - 2x2 grub screws
Hinge leaf
l3 = l4 - extended on both sides
Length l1
120
Material
ZD - Zinc die casting
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.362 kg
Width l2
60
d1
M 8
d3
8
h1
15
h2
8
h3
8.5
h4
17
l3
51.5
l4
51.5
l5
14
m1
90
m2
36
m3
45
m4
45
