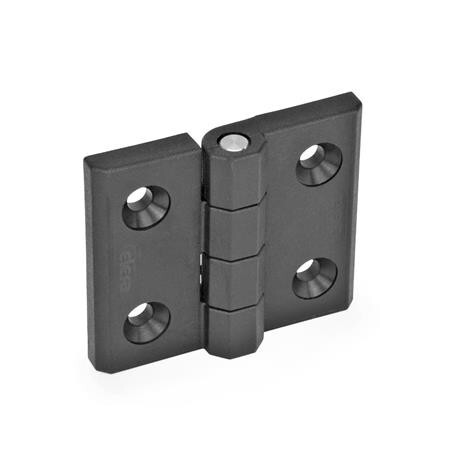

Hinge, plastic
GN 239.3-70-60-SH Elesa 425812KT - Plastic
Item-no.: 1191380Supplier number: 239.3-70-60-SHEAN: 4045525520028
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description
The GN 239.3 hinges without switch have the same design like hinges GN 239.4 and serve as auxiliary hinge, e.g. for large doors requiring several hinges.
Attributes
Form
SH - 2x2 holes for countersunk screw
Length (battery)
7.5
Length l2
60
Material
KT - Plastic
RoHS
Ja
Weight
0.067 kg
Width l1
70
h4
14.5
m1
45
m2
34
