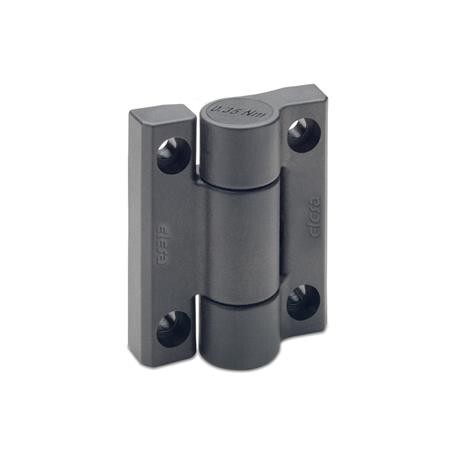

Hinge with spring return
GN 233.3-55-67-L-1-SW black mattPA-HP - Polyamide PA-HP
Item-no.: 1399201Supplier number: 233.3-55-67-L-1-SWEAN: 4045525433816
Quantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description
Hinges GN 233.3 with spring-loaded return allow doors to be automatically opened and closed by means of the torsion spring. The return torque varies with the opening angle of the hinge. Endurance tests have shown that the restoring torque does not change even after 100,000 opening / closing cycles.
Attributes
Code number
1 - light spring force
Code number 2
0,7
Colour
SW - black, matt
Form
L - Spring return, closing
Length (battery)
6.3
Length l2
67
Material
PA-HP - Polyamide PA-HP
RoHS
Ja
Weight
0.067 kg
Width l1
55
d1
6.5
d2
10
h1
24
h2
12.5
l3
12.5
m1
38
m2
48
max RückstelldrehmomentMR in NmKennziffer 1
0,35
