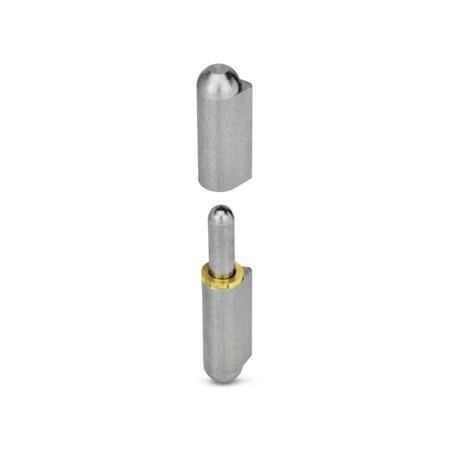

Weld-on hinge
GN 128-60-ST Steel blank, steel pinST - Steel
Item-no.: 1188786Supplier number: 128-60-STEAN: 4045525043947
Quantity:
1 PiecePackable
Item available in 34 variants:
Price and stock visible after login
Description
Hinges GN 128 are produced from drawn weldable profiled steel extrusions. Types ST, STS and MS feature a hinge pin fixed in the lower half of hinge. Type STL with loose steel pin allows the easy installation when attaching several hinges in parallel or if the door is very heavy. The upper half of Type STS hinge has an additional lubricating nipple DIN 71412-A which allows the hinges to be lubricated without dismantling the hinges.
Attributes
Form
ST - with fixed steel pin
Length l
60
Material
ST - Steel
RoHS
Ja
Weight
0.036 kg
d1
10
d2 Pin
6
s1
12
s2
1.8
