Disc handwheel (A3)
GN 521-100-K12-A ElesaPP - plastic
Item-no.: 1204750Supplier number: 521-100-K12-AEAN: 4045525272965
Quantity:
1 PiecePackable
Item available in 41 variants:
Price and stock visible after login
Description
Disk handwheels GN 521 have recessed grips at their back. The cover conceals clamping elements, e.g. countersunk washers, as well as protruding and recessed shafts. For mounting, the cover is pushed in by hand. For dismantling, the cover can be raised and taken off by applying moderate pressure in the rim of the cover.

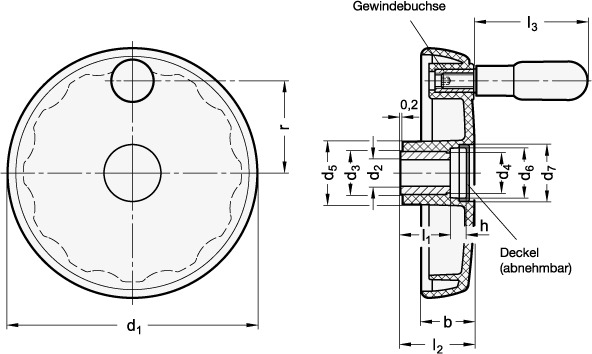

Attributes
Bore identification
K - with hub groove DIN 6885-1 P9
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole diameter d3 (Form A)
12
Form
A - without handle
Handwheel diameter d1
100
L1
22
L2
34
Material
PP - plastic
R
39
RoHS
Ja
Weight
0.130 kg
b
24
d3
22
d4
20
d5
30
d6
25
d7
27
h
9
l3
60
Ø Cylinder handle
18
Ø Zylindergriff
18
