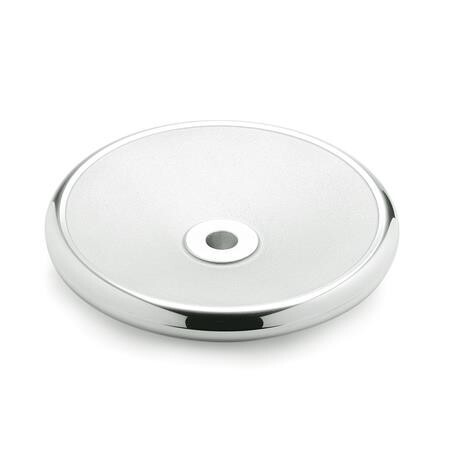

Disc handwheel
DIN 3670-160-B16 Hole without grooveAL - Aluminium
Item-no.: 1201409Supplier number: DIN 3670-160-B16customs tariff number: 84879090EAN: 4045525227569
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels DIN 3670 have recessed grips at their back. As a rule they are supplied without handle, but the mounting of a handle is possible. The handwheel diameter d1=80 and d1=400 are not provided in the official standard sheet.
Attributes
Bore identification
B - without hub groove
Bore labelling
B - without hub groove
Borehole diameter d2
16
Handwheel diameter d1
160
L1
20
L2
40
Material
AL - Aluminium
RoHS
Ja
Weight
0.510 kg
b
18
d3
36
l2 ≈
40
