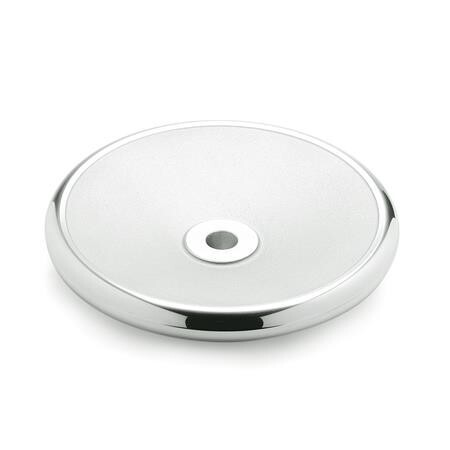

Disc handwheel
DIN 3670-200-B18 Hole without grooveAL - Aluminium
Item-no.: 1201412Supplier number: DIN 3670-200-B18customs tariff number: 84879090EAN: 4045525227699
Quantity:
1 PiecePackable
Item available in 38 variants:
Price and stock visible after login
Description
Disk handwheels DIN 3670 have recessed grips at their back. As a rule they are supplied without handle, but the mounting of a handle is possible. The handwheel diameter d1=80 and d1=400 are not provided in the official standard sheet.

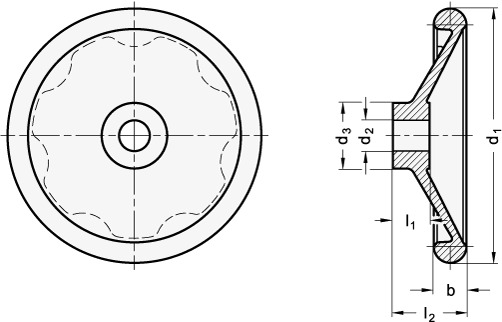

Attributes
Bore identification
B - without hub groove
Bore labelling
B - without hub groove
Borehole diameter d2
18
Handwheel diameter d1
200
L1
24
L2
45
Material
AL - Aluminium
RoHS
Ja
Weight
0.943 kg
b
22
d3
42
l2 ≈
45
