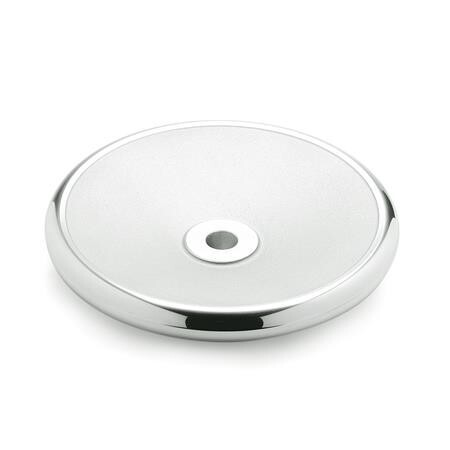

Disc handwheel
DIN 3670-315-B28 Hole without grooveAL - Aluminium
Item-no.: 1201424Supplier number: DIN 3670-315-B28customs tariff number: 84879090EAN: 4045525227941
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels DIN 3670 have recessed grips at their back. As a rule they are supplied without handle, but the mounting of a handle is possible. The handwheel diameter d1=80 and d1=400 are not provided in the official standard sheet.
Attributes
Bore identification
B - without hub groove
Bore labelling
B - without hub groove
Borehole diameter d2
28
Handwheel diameter d1
315
L1
33
L2
56
Material
AL - Aluminium
RoHS
Ja
Weight
2.689 kg
b
28
d3
56
l2 ≈
56
